ELECTRICAL SAFETY • POWER PROTECTION

Protecting Power.
Powering Reliability.

ACEL delivers reliable circuit protection solutions for industrial, commercial and mission-critical electrical infrastructure. From low-voltage distribution to advanced power protection, we help safeguard people, equipment and critical operations.

MCB MCCB ACB RCD / RCBO VCB SPD
Explore Products Talk to an Engineer
IEC Compliant Solutions
LV & MV Protection Range
24/7 Engineering Support
Scroll to Explore
LOW VOLTAGE PROTECTION

Miniature Circuit Breaker (MCB)

Eaton Miniature Circuit Breakers provide reliable protection against overload and short circuit conditions in residential, commercial and industrial electrical systems. Designed according to IEC standards for maximum safety and long service life.

  • High Breaking Capacity
  • Overload Protection
  • IEC 60898-1 Certified
  • Residential & Commercial
  • DIN Rail Mounting
  • Long Electrical Life
Download Datasheet Request Quote

Technical Specifications

Rated Current 6A,10A,16A,20A,25A,32A,40A,63A
Rated Voltage 230/400V AC
Breaking Capacity 6kA / 10kA
Pole Configuration 1P,2P,3P,4P
Frequency 50/60Hz
Standard IEC/EN 60898-1
Mounting DIN Rail
Application Residential • Commercial • Industrial

Key Specifications

Rated Current (In)
6A, 10A, 16A, 20A, 25A, 32A,
40A, 50A, 63A
Rated Voltage (Ue)
240/415V AC
Breaking Capacity (Icn)
6kA / 10kA
Frequency
50 / 60 Hz
Poles
1P, 2P, 3P, 4P
Standard
IEC / EN 60898-1
Curve Type
C Curve
Mounting
DIN Rail Mounting

Applications

Residential

Buildings

Commercial

Buildings

Industrial

Facilities

Distribution

Boards

Infrastructure

& Utilities

Solar & Power

Systems

Residual Current Device
RCD

Residual Current Device

Eaton Residual Current Devices continuously monitor leakage current and disconnect the circuit immediately in case of an earth fault, protecting people and equipment from electric shock and fire hazards.

Enhanced Safety

Protection against electric shock

Fast Tripping

30mA / 100mA / 300mA sensitivity

IEC Standard

IEC/EN 61008 Compliant

Commercial Use

Residential & Industrial Applications

Download Datasheet Request Quote

Key Specifications

Rated Current 16A – 100A Voltage 230/415V AC
Sensitivity 30mA / 100mA / 300mA / 500mA Frequency 50Hz
Standard IEC/EN 61008 Type AC / A / G / S
Breaking Capacity 10kA Protection Earth Leakage Protection

Applications

Residential
Commercial
Industrial
Hospitals
Data Centres
Power Distribution
Add-on RCD Unit
Residual Current Devices

Add-on RCD Unit

The Eaton Add-on RCD Unit converts compatible miniature circuit breakers into residual current protection devices, providing additional protection against earth leakage while maintaining short-circuit and overload protection.

Designed for residential, commercial and industrial installations, the add-on unit offers a compact solution where flexible protection is required.

Earth Leakage Protection

30mA / 100mA / 300mA Sensitivity

Compatible With

Eaton PLS Series MCBs

Compact Design

Side Mounted Add-on Module

IEC Standard

IEC/EN 61009

Easy Installation

DIN Rail Mounting

Reliable Operation

Long Mechanical Life

Download Datasheet Request Quote

Key Specifications

Rated Voltage 230 / 400V AC Sensitivity (IΔn) 30mA, 100mA, 300mA
Frequency 50 / 60Hz Poles 1P+N, 2P, 3P, 4P
Standard IEC/EN 61009 Mounting DIN Rail
Compatibility Eaton PLS Series MCBs Application Residential & Industrial

Applications

Residential

Buildings

Commercial

Buildings

Industrial

Facilities

Distribution

Boards

Infrastructure

& Utilities

Solar & Power

Systems

Busbar System
Power Distribution

Busbar System

Eaton Busbar Systems provide safe, reliable and efficient power distribution inside electrical panels and switchboards while reducing wiring time and improving installation quality.

Designed for residential, commercial and industrial electrical distribution systems with high current carrying capacity and long service life.

High Current Capacity

Suitable for heavy load distribution

Safe Operation

Reduced risk of loose wiring

Compact Design

Space-saving panel installation

Easy Installation

Quick assembly inside switchboards

Reliable Connection

Low power loss and temperature rise

IEC Standard

International safety compliance

Download Datasheet Request Quote

Key Specifications

Rated Current 63A – 250A Rated Voltage 415V AC
Material Copper / Tin Plated Copper Frequency 50 / 60Hz
Mounting DIN Rail / Panel Mounted Standard IEC 61439
Application Power Distribution Panels Operating Temperature -25°C to +70°C

Applications

Residential

Buildings

Commercial

Buildings

Industrial

Facilities

Distribution

Boards

Infrastructure

& Utilities

Solar & Power

Systems

Eaton MCCB
Power Distribution

Moulded Case Circuit Breaker (MCCB)

Eaton NZM Series MCCBs provide advanced protection against overload, short circuit and electrical faults for industrial and commercial power distribution systems.

Designed with adjustable thermal and magnetic trip units, high breaking capacity and global IEC, UL and CSA approvals, the NZM series ensures maximum safety and reliability.

High Breaking Capacity

25kA • 36kA • 50kA

Adjustable Trip Unit

Thermal & Magnetic Protection

Wide Current Range

20A – 500A

Available Versions

3 Pole & 4 Pole

Global Standards

IEC, UL & CSA Approved

Wide Accessories

Motorized, Plug-in & Withdrawable

Download Datasheet Request Quote

Key Specifications

Rated Current 20A – 500A Rated Voltage 415V AC
Breaking Capacity 25kA / 36kA / 50kA Frequency 50/60 Hz
Trip Unit Thermal Magnetic Standard IEC 60947-2
Poles 3P / 4P Approvals IEC, UL, CSA

Applications

Residential

Buildings

Commercial

Buildings

Industrial

Facilities

Distribution

Boards

Infrastructure

& Utilities

Solar & Power

Systems

Eaton Air Circuit Breaker
Power Distribution

Air Circuit Breaker (ACB)

Eaton Air Circuit Breakers provide intelligent protection for low-voltage power distribution systems with high interrupting capacity, electronic trip units and advanced communication options.

Designed for critical power infrastructure including substations, industrial plants, commercial buildings and data centres, Eaton ACBs ensure maximum reliability and operational safety.

High Breaking Capacity

Up to 100kA

Electronic Trip Unit

Advanced Protection & Monitoring

Motorized Operation

Fixed & Withdrawable Versions

Communication Ready

Modbus / Ethernet Support

IEC Standard

IEC 60947-2

Reliable Performance

Industrial Grade Protection

Download Datasheet Request Quote

Key Specifications

Rated Current 630A – 6300A Rated Voltage 690V AC
Breaking Capacity 65kA – 100kA Frequency 50 / 60Hz
Trip Unit Electronic Protection Standard IEC 60947-2
Installation Fixed / Drawout Communication Modbus, Ethernet

Applications

Residential

Buildings

Commercial

Buildings

Industrial

Facilities

Distribution

Boards

Infrastructure

& Utilities

Solar & Power

Systems

Vacuum Circuit Breaker
Medium Voltage Protection

Vacuum Circuit Breaker (VCB)

Eaton Vacuum Circuit Breakers provide reliable switching and protection for medium-voltage electrical distribution systems. Designed for high operational reliability, long mechanical life, and excellent arc interruption performance.

Ideal for substations, industrial facilities, utilities and critical infrastructure where dependable medium-voltage protection is essential.

High Breaking Capacity

Up to 40kA

Vacuum Interruption

Arc-Free Operation

Long Mechanical Life

30,000+ Operations

Digital Protection

Relay Integration

Remote Operation

Motorized Mechanism

IEC Certified

IEC 62271-100

Download Datasheet Request Quote

Key Specifications

Rated Voltage 12kV / 24kV / 36kV Rated Current 630A – 3150A
Breaking Capacity 25kA – 40kA Frequency 50 / 60Hz
Mechanical Life 30,000 Operations Electrical Life 10,000 Operations
Standard IEC 62271-100 Installation Indoor Switchgear

Applications

Power

Substations

Commercial

Buildings

Industrial

Plants

Hospitals

Infrastructure

Data

Centres

Utilities

Grid Systems

Motor Protection Circuit Breaker
Motor Protection

Motor Protection Circuit Breaker (MPCB)

Eaton Motor Protection Circuit Breakers provide comprehensive protection against overload, short circuit and phase failure for electric motors. Designed for reliable motor starting, switching and isolation in industrial applications.

The PKZM0 series combines protection, control and isolation into one compact device, reducing installation space while increasing operational reliability.

Motor Protection

Overload & Short Circuit

Phase Failure Protection

Automatic Motor Safety

Adjustable Current

0.1A – 32A Settings

Manual Switching

ON / OFF Motor Control

Auxiliary Accessories

Contact & Trip Modules

IEC Certified

IEC 60947-4-1

Download Datasheet Request Quote

Key Specifications

Current Range 0.1A – 32A Rated Voltage 690V AC
Breaking Capacity 100kA Frequency 50 / 60Hz
Trip Type Thermal & Magnetic Motor Protection Overload / Short Circuit / Phase Failure
Standard IEC 60947-4-1 Mounting DIN Rail

Applications

Industrial

Machinery

HVAC

Systems

Water

Pumps

Commercial

Buildings

Power

Distribution

Automation

Panels

Surge Protection Device
Surge Protection

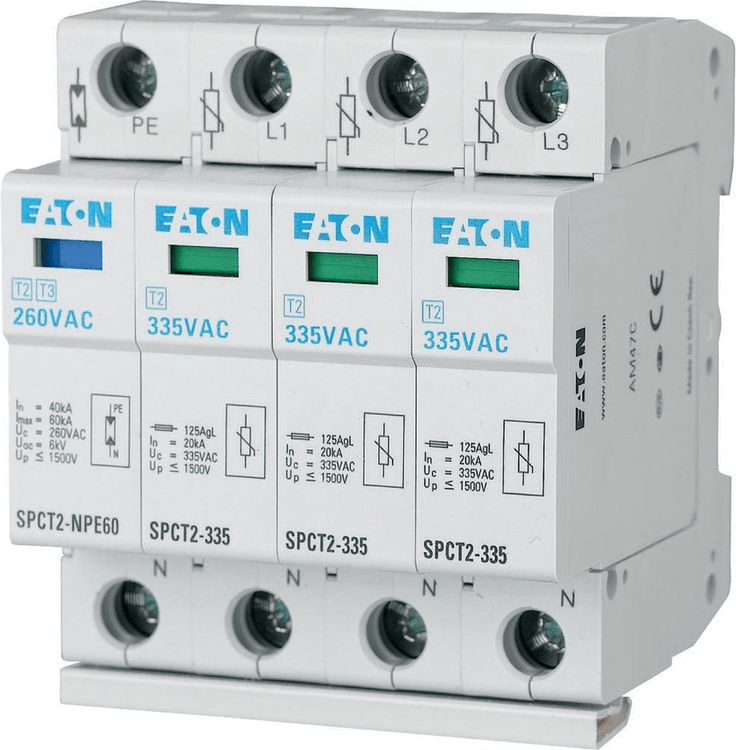

Surge Protection Device (SPD)

Eaton Surge Protection Devices provide reliable protection for low-voltage electrical distribution systems against transient overvoltage caused by lightning strikes and switching operations.

The Eaton SPCT2 series provides Type 2 surge protection for low-voltage distribution systems, while SPBT12 series solutions provide combined Type 1 + Type 2 protection for applications requiring higher levels of lightning and surge protection.

Surge Protection

Protection Against Transient Overvoltage

Lightning Protection

Direct & Indirect Lightning Protection

Type 2 SPD

SPCT2 Plug-in Surge Arresters

Type 1 + Type 2

SPBT12 Lightning Current Arrester

Multiple Pole Options

1-Pole to 4-Pole Configurations

IEC Certified

IEC 61643 Compliant

Download Datasheet Request Quote

Key Specifications

SPD Type Type 2 / Type 1 + Type 2 Rated Voltage 280V AC
Configuration 1-Pole to 4-Pole Surge Protection Lightning & Switching Transients
Test Class Class I / Class II Standard IEC 61643
Connection Busbar Compatible Remote Indication Optional Auxiliary Contact

Applications

Residential

Buildings

Commercial

Buildings

Industrial

Facilities

Distribution

Boards

Infrastructure

& Utilities

Data Centres

Critical Systems
